C.R. Goods Brake Van Kits

The specification for all the goods stock kits is as follows:

Photo-etched brass body and underframe;
Etched and investment cast brass details and fittings;
Compensated underframe;
All wire, glazing material etc as appropriate and
Sprung buffers.

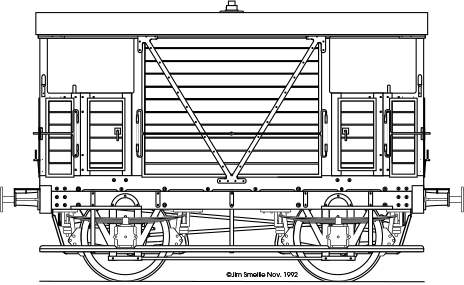

Scale drawing of CC20

Download kit instructions and prototype notes

CC20  4mm scale 15T Brake Van
£30.00. Packed Weight 200g

A total of 37 of these vans were built to lots G202, G217, G255, G251 and G258 between about 1903 and 1908 for use mainly on shorter distance traffic. It is thought that at least some of these survived until after the second World War.

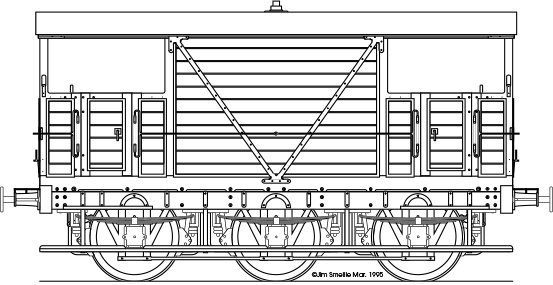

Scale drawing of CC25

Download kit instructions and prototype notes

CC25  4mm scale 20T Brake Van
£32.50. Packed Weight 200g

This kit represents the singular, Westinghouse braked example of D63. Built in 1904 it was effectively a prototype for the production run featured in the range as CC25A and probably survived into the late '40s.

Scale drawing of CC25A

CC25A New!!   4mm scale 20T Brake Van
£32.50. Packed Weight 200g

The 20 prototype vans of the production run of D63 vans were built in 1907. Compared with the prototype, the roof was 3 inches higher, self-contained buffers featured and the Westinghouse brake equipment was deleted. Probably survived into the late '40s.
