C.R. 57' Corridor Coach Kits

57' 8 wheel corridor stock built 1921-23.

These coaches represent the final era of Caledonian coach design. With a full ellipical roof and, in the later examples, an angle-trussed underframe they were in many respects similar to contemporary coaches built by the MR and LNWR with whom they were soon to merge (with others) to form the London Midland and Scottish Railway. Built by outside contractors none of this stock was fitted with vacuum brake when built and so were confined to being hauled by Westinghouse fitted C.R. locomotives until about 1933 when all were fitted with vacuum equipment. After this they spread to all parts of the L.M.S. system in Scotland and were not unknown south of the border.

Examples of all types lasted well into B.R. days but sadly by then the bodywork had often been marred by repairs using tongue and groove boarding. On a more happy note an example of each of Diagrams 124 and 111A (CC3 & 8) survive, preserved by the S.R.P.S. at Bo'ness, Scotland.

CC38  4mm scale Corridor 3rd Diagram 124 + Corridor brake composite Diagram 111A.
£72.00. Packed Weight 1200g

The preserved set. Offered at a special price for the pair.

See CC03 and CC08 for details of the individual coaches.

1 only left in stock

Scale drawing of CC01

Download Instructions for CC01-08    Download Numbering Information for CC01-08

CC01  4mm scale Corridor brake 3rd Diagram 122A.
£40.00. Packed Weight 500g

Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.

Scale drawing of CC02

Download Instructions for CC01-08    Download Numbering Information for CC01-08

CC02  4mm scale Corridor composite Diagram 112B.
£40.00. Packed Weight 500g

Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.

1 only left in stock

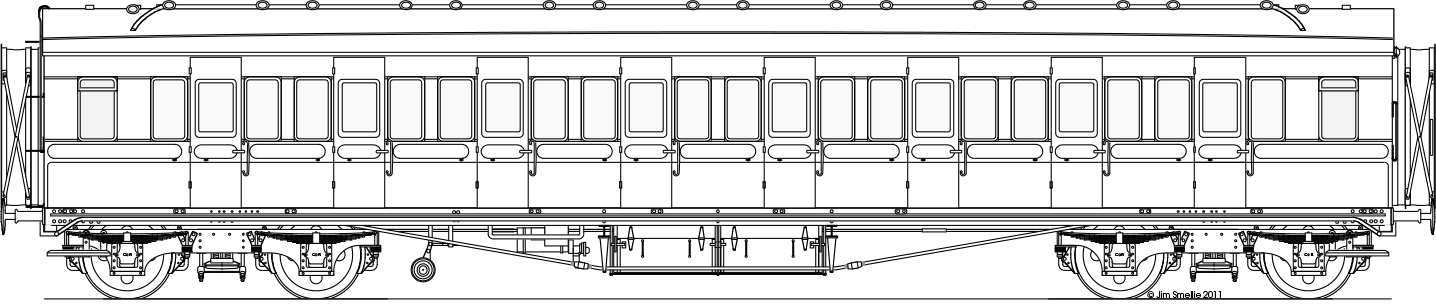

Scale drawing of CC03

Download Instructions for CC01-08    Download Numbering Information for CC01-08

CC03  4mm scale Corridor 3rd Diagram 124.
£40.00. Packed Weight 500g

Built 1921 by the Metropolitan C & W Co., Birmingham. Round-rod and queenpost underframe. (Corridor side shown in drawing)

1 only left in stock


Compartment side

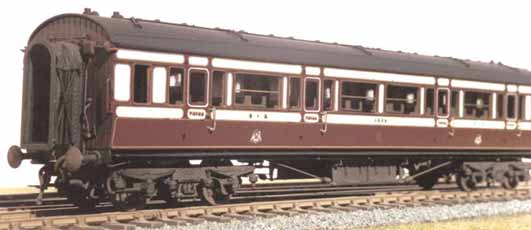

Photo of model D124 (corridor side)

Corridor side   Model built by ROCAR Phone 01697 470284 (Photos © ROCAR)

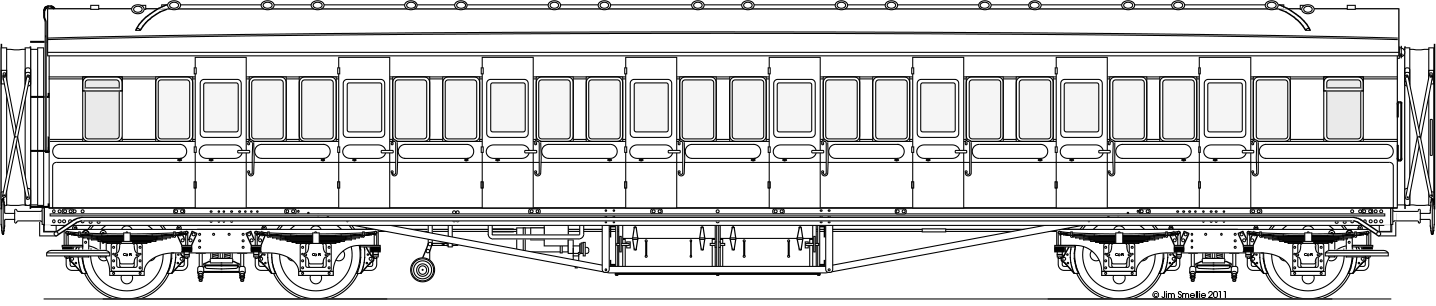

Scale drawing of CC03a

Download Instructions for CC01-08    Download Numbering Information for CC01-08

CC03a  4mm scale Corridor 3rd Diagram 124.
£40.00. Packed Weight 500g

As CC03 but built 1922 by R.Y. Pickering, Wishaw. Angle truss underframe. (Compartment side shown in drawing.)

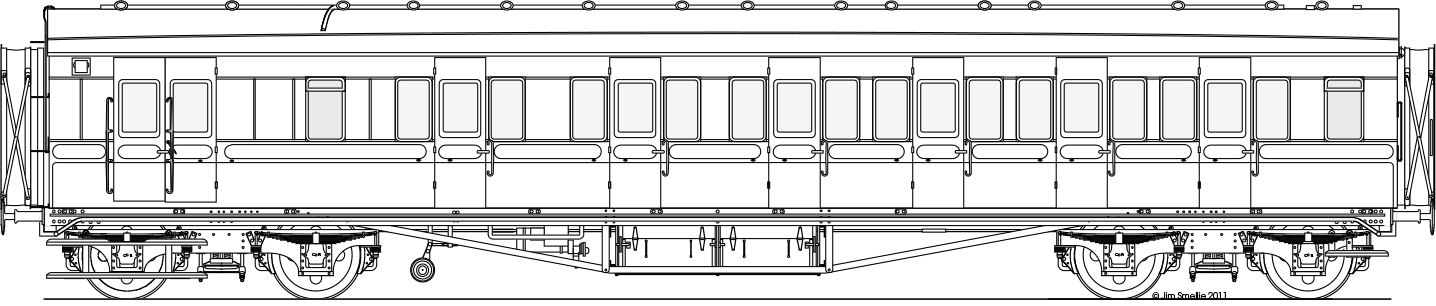

Scale drawing of CC08

Download Instructions for CC01-08    Download Numbering Information for CC01-08

CC08  4mm scale Corridor brake composite Diagram 111A.
£40.00. Packed Weight 500g

Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.

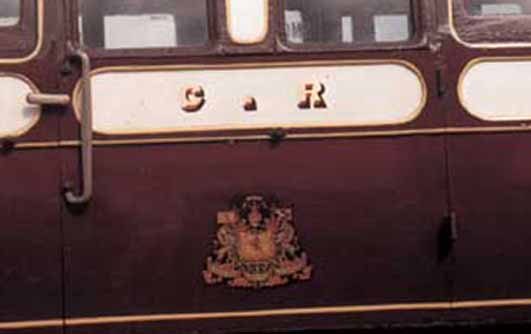

Crest detail from preserved D111A

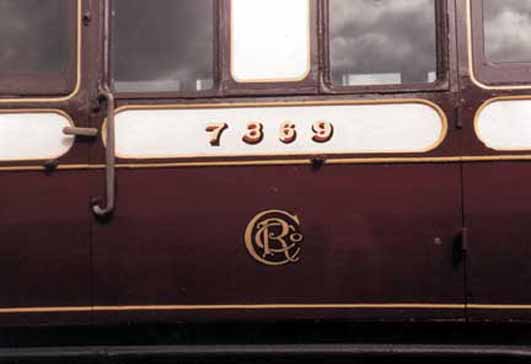

Number/Roundal detail from preserved D111A

A couple of detail shots taken of the example of D111A preserved by the Scottish Railway Preservation Society at Bo'ness, West Lothian. Note that these shots date back to c1986 and were taken at an open day at Haymarket Shed, Edinburgh when (CR)464 was running with its second LMS number despite the livery - this has now been corrected!
